VibVue®
VibVue® visualizes vibration in a machinery, allowing engineers to see subtle machinery vibrations with motion magnification technology.
Product overview
VibVue® visualizes vibration in a machinery, allowing engineers to see subtle machinery vibrations with motion magnification technology.
Key features
Motion magnification exceeding 1,000×
Makes microscopic machinery movement clearly visible.
Warp Speed technology
Capable of detecting vibration frequencies beyond 10,000 Hz.
High-sensitivity measurement
Detects displacement as small as 0.1 mil or 0.0025 mm at practical distances.
Advanced analysis tools
Frequency, displacement, velocity, acceleration, overall vibration and phase angle.
Frequency filtering and diagnostics
Waveform and spectrum charts, motion vectors, modal analysis and live diagnostics.
Automated reporting
Export to PowerPoint, Excel, PDF and MP4 formats.

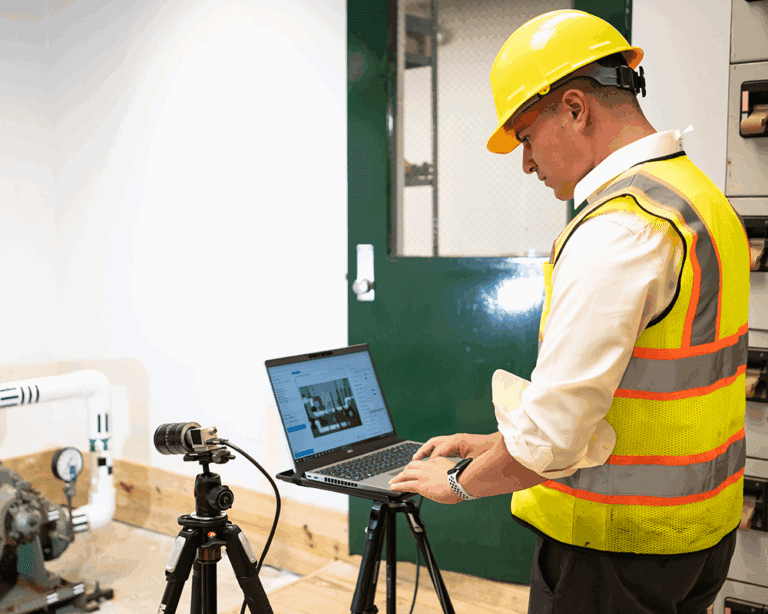

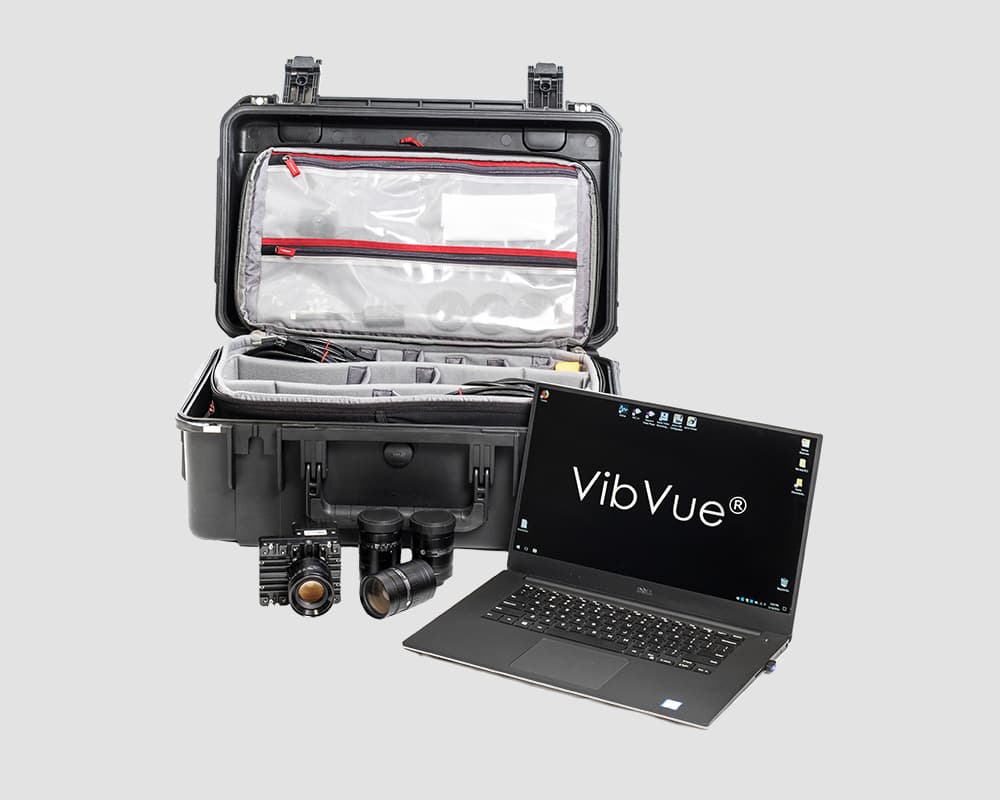

Portable, laptop-based operation
Uses cost-effective camera hardware without requiring on-site internet access.
Key benefits
Makes invisible vibration visible
Normally invisible vibration patterns become easy to see and understand.
Identifies root causes with confidence
Helps engineers pinpoint vibration sources.
Captures a whole machine at once
Covers a machine, structure or piping area simultaneously without installing multiple sensors.
Cuts troubleshooting cost
Reduces the time, labour and cost of vibration troubleshooting and ODS-style investigations.
Speeds up maintenance decisions
Helps reduce equipment downtime and repeat investigations.
Provides clear visual evidence
Easy to communicate to maintenance teams, management and equipment suppliers.
Applications
- Troubleshooting vibration problems in pumps, motors, compressors, turbines, fans, blowers, engines and gearboxes.
- Identifying structural resonance, rocking, swaying and abnormal vibration modes.
- Detecting soft foot, looseness, coupling movement and machinery support problems.
- Evaluating piping vibration, pipe supports, machinery foundations, platforms and connected structures.
- Conducting modal analysis, impact testing and structural dynamic investigations.
- Supporting equipment commissioning, acceptance testing and baseline condition assessment.
- Performing live diagnostics and condition monitoring of critical machinery.
Industries served
- Power generation and energy
- Oil and gas, petrochemical and refining
- Water and wastewater
- Manufacturing and process industries
- Mining
- Marine, rail, automotive and other transportation sectors
- HVAC and building services
- Pulp and paper
- Aerospace and defence
- Equipment manufacturing, laboratory testing and research and development
Technical specifications
| Software version | VibVue® 4.1 |
|---|---|
| Motion magnification | > 1,000× |
| Frequency detection range | > 10,000 Hz (600,000 CPM) at full resolution — Warp Speed mode, VibVue® Pro only |
| Displacement detection threshold | 0.1 mil (0.0025 mm) at 10 ft field-of-view |

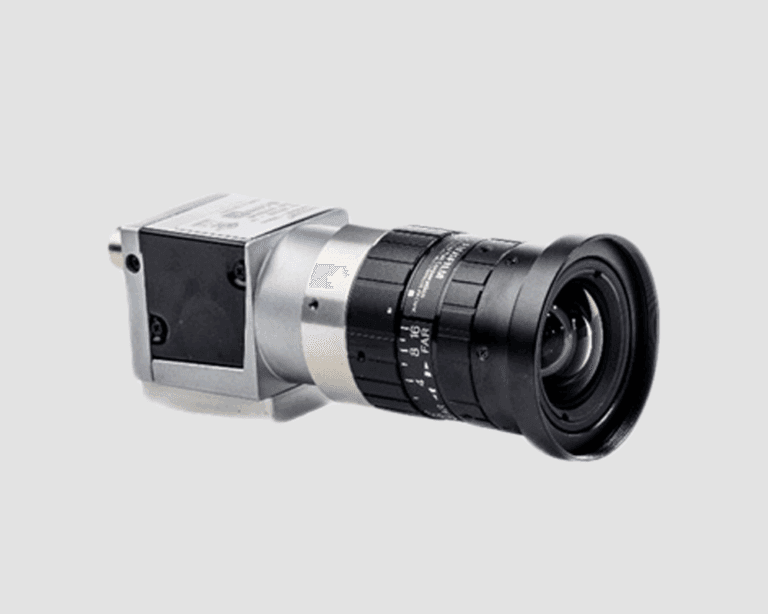

| Camera resolution | 1920 × 1200 (2.3 MP) |
| Standard camera frame rate | 156 fps @ 1920 × 1200; 312 fps @ 1920 × 600 |
| High-frequency camera frame rate | 1480 fps @ 1920 × 1080; 3290 fps @ 640 × 480 |
| Camera type | Monochrome or colour |

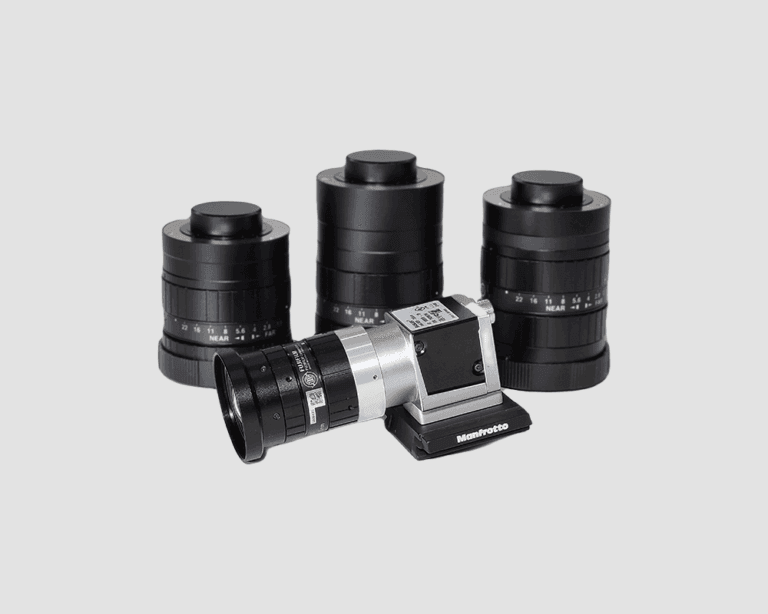

| Lens options | 6 mm, 12 mm, 25 mm, 50 mm (precision lens set) |
| Measurement outputs | Frequency, displacement, velocity, acceleration, overall vibration, phase angle |
| Vibration standard overlays | ISO 10816, Energy Institute |
| Report export formats | .PPT, .XLSX, .PDF; video export .MP4 |
| Lighting | Flicker-free LED light + stand (optional 22,000 lumen AC-powered high-intensity kit) |
| Support plan | 1 year of software updates, expert project review and technical support |
